Guard Rail (ROAD BARRIER) Production Lines

Guard Rail (ROAD BARRIER) Production Lines

Roll Forming Machine, Cassette type for Rail ‘’A (2W), B, 3W profiles’’

• Start- stop or automatic operation with qiuck change roll tooling
• Sheet metal width:420 mm / 470 mm / 750 mm
• Strip thickness: 3.0 – 3.5 mm
• Cutting length profile: 4.300 mm (adjustable length)
• Material:S235JR / S355JR / S420MC/ S500MC
• Special stamping unit and roll forming machine

Span Band

• Strip thickness: 5.0 mm
• Strip width: 70 mm
EAE Machinery provides both standard and flexible production line
for processing of coiled sheet metal of road barrier systems

Guard Rail Post '' C '' Profile

• Start- stop or automatic operation with quick change roll forming
• Strip thickness: 4.0 – 5.0 mm
• Material: S235JR/ S355JR
• İntegral pre punch equipment
• Roll Forming Machine, Flying shears and Stacking unit

Sigma Post “Sigma profile’’

• Start- stop or automatic operation with quick change roll tooling
• Strip thickness:4.0 – 4.2 mm
• Material:S235JR/ S355JR
• Integrated pre-punch equipment
• Roll Forming machine, Flying shears and Stacking unit

oto-yol-bariyeri-ek
oto-yol-bariyeri-ek3
oto-yol-bariyeri-2
oto-yol-bariyer-2
C Profile
oto-yol-bariyeri-ic-kisim-foto6
oto-yol-bariyeri-ic-kisim-foto5
Guard 2W Rail
yol-bariyeri-imalat
Guard B Rail
oto-yol-bariyeni-imalat-hatti
oto-yol-bariyeri-roll-form-hatti
Guard Rail
oto-yol-bariyeri-ic-kisim-foto4
oto-yol-bariyeri-ic-kisim-foto
oto-yol-bariyeri-imalat-makinasi
oto-yol-bariyeri-ic-kisim-foto2
yol-bariyeri-imalat-makinesi
uretim-yolu-hatti-cit4
oto-yol-bariyeri-ic-kisim-foto3
oto-yol-bariyeri-imalat-hatti-2

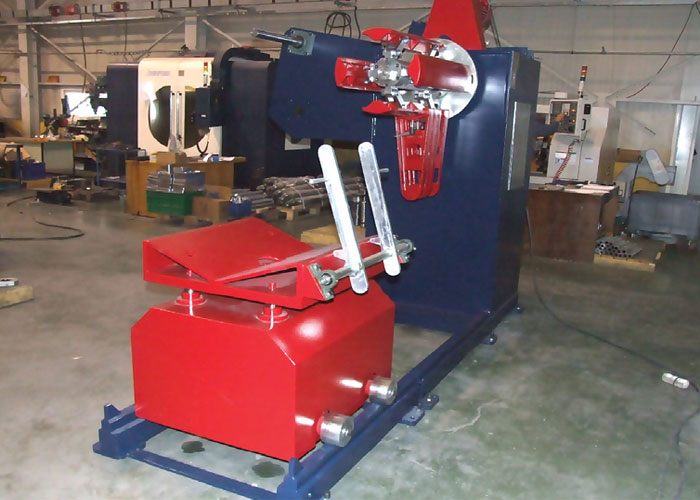

1. Decoiler, coil car
2. Loop pit
3. Straightener and feeder
4. Hydraulic Press Group
5. Loop Pit

6. Roll forming machine (classic or cassette type)
7. Flying shears
8. Shrink unit
9. Conveyor
10. Drop type stacking
